Our Sun is amazing when you think about it. Light from the sun travels millions of kilometers across space, through our atmosphere and to us providing warmth, visual light and vital energy for plants on this earth. Imagine if you could utilize this energy from the sun in a meaningful significant way. Well! you can. Bitlink is the right partner to help you do just that.
We offer some of the industry’s most comprehensive portfolio of products, systems, solutions and services to optimize the performance, reliability and return on investment of any solar installation – from residential rooftops to commercial and industrial applications.
Our Services and Solutions include:
- Solar System design and installation
- Home Solar stand-alone systems
- Solar Backup system design and installation (utilising inverter-charger and battery bank)
- Solar street lighting systems
- Solar grid and plant systems
- Solar water pump systems (direct powered and battery bank supported )
- Electrical System design and installation
- Electrical system design and installation for residential and commercial buildings.
- Conventional street lighting
- High mast flood lighting
- UPS system design and installation
- Data Center Cooling
- Conventional Low and High lift Multi-stage water pump installations.
Our Product range consists of:
- Solar Panels
- Solar Batteries
- Charge Controllers
- Solar Street Lighting
- Inverter Chargers
- Borehole Pumps
- Solar Water Heating
- Solar Freezers
The total energy absorbed by the earth in one hour from the sun is more energy than the entire world consumes in one year. Even though current technology can only utilize a very miniscule fraction of this, (rough estimate of between 0.4% to 13%) one day we may be able to power everything on earth through solar.
This is why Bitlink provides solutions for the collection and utilization of solar energy. This technology will greatly reduce your expenditure on electricity while increasing reliability and availability of power. With Solar Energy it is possible to even power remote sites that have no access to the main power grid.
If you are looking to take advantage of the free energy from the sun to power your home or your business, Bitlink is the right partner for you. Talk to us now and find out how we can help you realize amazing savings.
Solar Panels
Inverter Chargers
Bitlink Power solutions supplies and installs awide variety of inverter/chargers(750W-20KW) designed to provide clean, reliable, true sine wave back-up power that seamlessly works with any equipment without the electrical buzzing associated with modified sine wave inverters (some equipment will not work at all). In the event of a utility power outage, our equipment provides virtually instantaneous transfer to battery back-up power without interrupting the equipment.Brands include but not limited to Tripplite,Outback,Zeron-Power,APC,Su-kam.Our inverter charger have 2 year warranty
Batteries
We supply and install awide variety of deep cycled maintenance free solar batteries.Brands include but not limited to Ritah, , Yuasa ,Gaston, Surrette,hoppecke,Su-kam,Fiamm.Our batteries are fully warranted.
Trojan J185H-AC Datasheet
A solar battery must provide exceptional robust durability, long life and consistent performance every day. TROJAN solar batteries are designed to excel in isolated solar photovoltaic facilities.
| System Voltage | 12V | 14V | 36V | 48V |
| Daily Charge | 14.8 | 29.6 | 44.4 | 59.2 |
| Float | 13.2 | 26.4 | 39.6 | 52.8 |
| Equalizer | 15.5 | 31.0 | 46.5 | 62.0 |
Trojan L16RE-B Datasheet
A solar battery must provide exceptional robust durability, long life and consistent performance every day. TROJAN solar batteries are designed to excel in isolated solar photovoltaic facilities.
| System Voltage | 12V | 14V | 36V | 48V |
| Daily Charge | 14.8 | 29.6 | 44.4 | 59.2 |
| Float | 13.2 | 26.4 | 39.6 | 52.8 |
| Equalizer | 15.5 | 31.0 | 46.5 | 62.0 |
VICTRON Gel and AGM Batteries
Our AGM deep cycle batteries have excellent high current performance and are therefore recommended forhigh current applications such as engine starting. Due to their construction, Gel batteries have a lower effective capacity at high discharge currents. On the other hand, Gel batteries have a longer service life, both under float and cycling conditions.
- Low Self-discharge
- Exceptional Deep Discharge Recovery
Rolls Surrette S-530
Rolls Battery Engineering, based in Salem, Massachusetts, has been manufacturing deep cycle batteries of the highest quality for more than 60 years. Our series 4000 system of batteries, manufactured specifically for solar and other renewable energy applications, are designed to offer up to 12 years of life.
Benefits
- Less Weight
- Greater rigidity
- Greater durable
- Less maintenance
Feature
- increase liquid reserve
- Unsurpassed cycling service – 10 year average life
Specification
- Voltage……………6,8 & 12 Volts nominal
Deka Solar Battery (8G4D)
The Deka Solar Series of valve-regulated, gelled-electrolyte batteries is designed to offer reliable, maintenance-free power for renewable energy applications where frequent deep cycles are required and minimum maintenance is desirable.
Applications
- Water pumping
- Residential
- Communications
- Refrigeration
- Lighting
- Wind generation
Specification
Voltage…………….12 Volts nominal

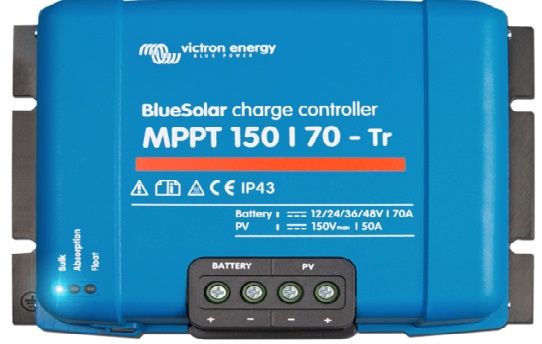

Solar Charge Controllers
We supply and install a wide range of both MPPT and PWM solar charge controller.Brands include but not limited to Victron,Morning Star,Outback,Steca,Phocos,BZ,Blue sky
Steca PR
Our newest, and fifth generation of solar charge regulators sets new standards in solar technology. For the first time a big graphical display shows all system information in a self explaining way. The integrated central processing unit, called Atonic , provides a charge controller with new functions. Atonic is more than a protective device for your battery, and contains the most recent and innovative technology. It contains a self-learning algorithm which gives detailed information on the battery’s state of charge (SOC).
Options:
- External temperature sensor
- Digital mulitfuntion alarmoutput
- Prepayment Unit for prepay systems
Safety Features:
- Electronic fuse, protection against overcurrent,
- overvoltage and overtemperaturer
- Protection against wrong polarity and short circuit
- Extremly low electromagnetic emission
| With LCD | PR1010 | PR1515 | PR2020 | PR3030 |
| Max. Charge Current | 10A | 15A | 20A | 30A |
| Max. Load Current | 10A | 15A | 20A | 30A |
| Max. Admissable Current | 110% | 110% | 110% | 110% |
| Load Overcurrent | 125% | 125% | 125% | 125% |
| Max. self consumption | 12 mA | 12 mA | 12 mA | 12 mA |
MorningStar (ProStar PS-30)
Morningstar’s ProStar is the world’s leading mid-range solar controller for both professional and consumer applications. This second generation ProStar:
- Adds new features and protections using highly advanced technology
- Provides longer battery life and improved system performance
- Sets new standards for reliability and self-diagostics
Electronic Protections:
- Short-circuit — solar and load
- Overload — solar and load
- Reverse polarity
- Reverse current at night
- High voltage disconnect
- High temperature disconnect
- Lightning and transient surge protection
- Loads protected from voltage spikes
- Automatic recovery with all protections
Specification (ProStar PS-30)
- Related Solar Current……………30A
- Related Load Current………………..30A
- System Voltage……………………….12/24V
FLEXmax- FM80-150vdc/-FM60-150 (OutBack)
The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power Systems. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C).
| Specification | ||
| FLEXmax- FM80-150VDC | FLEXmax- FM60-150VDC | |
| Nominal Battery Voltages | 12,24,36,48 or 60VDC | 12,24,36,48 or 60VDC |
| Maximum output Current | 80 amps | 60 amps |
MorningStar (TrStar MPPT)
Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.
Electronic Protections:
- Solar: Overload, Short Circuit, High Voltage
- Battery: High Voltage
- High Temperature
- Lightning and Transient Surges
- Reverse Current at Night
| Specification (TriStar MPPT 45 and 60) | ||
| TS-MPPT-45 | TS-MPPT-60 | |
| Maximum Battery Current | 45 amps | 60 amps |
| Nominal Maximum Solar Input(12V) | 600 Watts | 800 Watts |
| Nominal Maximum Solar Input(24V) | 1200 Watts | 1600 Watts |
| Nominal Maximum Solar Input(48V) | 2400 Watts | 3200 Watts |
Solar Panels/Modules
We supply awide range of solar modules from 5Wp-300Wp. Made of high efficiency mono and polycrystalline silicon solar cells. Every cell is tested and electronically matched to maximize output. The modules are manufactured according to the strict IEC requirements quality standards with 25-year limited warranty
Canadian Solar CS6P-235M
CS6P is robust solar module with 60 solar cells. These modules can be used for on-grid solar applications. Our meticulous design and productions techniques high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee Canadian Solar’s modules meet the highest quality standards possible.
Electrical Data
- Nominal maximum Power at STC (Pmax)-235W
- Optimum Operating Voltage (Vmp)-29.8V
- Optimum Operating Current (Imp)-7.90A
- Open Circuit Voltage (Voc)-36.9V
- Short Circuit Current (Isc)-8.46A
Applications
- On-grid residential roof-tops
- On-grid commercial/industrial roof-tops
- Solar power stations
- Other on-grid applications
Canadian Solar CS6C-140M
CS6C is a robust all purpose solar module with 36 solar cells. These modules can be used for on-grid and off-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee Canadian Solar’s modules meet the highest quality standards possible.
Electrical Data
- Nominal maximum Power at STC (Pmax)-140W
- Optimum Operating Voltage (Vmp)-18.0V
- Optimum Operating Current (Imp)-7.76A
- Open Circuit Voltage (Voc)-22.3V
- Short Circuit Current (Isc)-8.28A
Applications
- Residential roof-top systems
- Commercial/industrial building roof-top systems
- Large on-grid and off-grid solar power stations
- Rural area applications
- Other on-grid and off-grid applications
Canadian Solar CS5C-95M
CS5C is a robust solar module with 36 solar cells. These modules can be used for off-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee Canadian Solar’s modules meet the highest quality standards possible.
Electrical Data
- Nominal maximum Power at STC (Pmax)-95W
- Optimum Operating Voltage (Vmp)-18.3V
- Optimum Operating Current (Imp)-5.19A
- Open Circuit Voltage (Voc)-22.4V
- Short Circuit Current (Isc)-5.52A
Applications
- Power supply for remote electrical equipment
- Traffic, security environment, and other remote monitoring and signaling systems
- Water pumping systems
- Rural area applications
- Other off-grid applications
LG LD130R9W
LG off-grid solar modules are perfect for general off-grid applications in solar home system, telecommunications, water pumping and solar lighting. Built with reliable materials, a unique design and systematic quality assurance, LG is proud to provide its customers with unmatched product value and services.
| Electrical Data | |
| Module type | LD130R9W |
| Open-circuit voltage (Voc) | 21.69V |
| Optimum operating voltage (Vmp) | 17.05V |
| Short-circuit current (Isc) | 8.27A |
| Optimum operating current (Imp) | 7.77A |
REC Peak Energy Series
REC Peak Energy Series modules are the perfect choice for building solar systems that combine long lasting product quality with reliable power output. REC combines high quality design and manufacturing standards to produce high-performance solar modules with uncompromising qualit
| Electrical Datatype | |
| Module type | REC235PE |
| Open-circuit voltage (Voc) | 36.7V |
| Optimum operating voltage (Vmp) | 29.6V |
| Short-circuit current (Isc) | 8.51A |
| Optimum operating current (Imp) | 7.96A |
SCHOTT MONO™ 180/185/190
Crystalline module with MONO cells
At a glance
- High annual energy yield
- Monocrystalline high efficiency cells >17.5 %
- Positive power tolerance
- Elegant design
- Thorough SCHOTT quality control with German engineering
| Electrical Data at normal operating cell temperature (NOCT) | |||
| Module type | SCHOTT MONO™ 180 | SCHOTT MONO™ 185 | SCHOTT MONO™ 190 |
| Nominal power [Wp] | 130 | 134 | 137 |
| Voltage at nominal power [V] | 32.9 | 32.8 | 32.9 |
| Open-circuit voltage [V] | 39.3 | 40.2 | 41.0 |
| Short-circuit current [A] | 4.30 | 4.32 | 4.35 |
Design and Installation Services
Bitlink Power solutions provides Unmatched Solar system and conventional power design and installation services including but not limited to:
Solar System Design and Installation
- Home Solar Stand-alone system design and installation
- Solar Back-up system design and installation(Utilizing inverter charger and battery bank)
- Solar Street Lighting system design and installation
- Grid-tied Solar system design and installation
- Solar water pump system design and installation(direct and battery bank supported)
Electrical System Design and Installation
- Electrical Design and Installation services for Residential and commercial Buildings
Conventional street lighting design and installation- High Mast Flood Lights design and installation
UPS system design and Installation- Data center cooling design and installation
- Conventional Low and High lift Multi-stage water pumps design and installation
